FEATURES:
- High performance high voltage coreless digital servo
- High-precision metal gears with hard anodising
- Full CNC Machined Aluminium Shell Structure
- Dual Bearing Support
- JR style lead and plug
- Waterproof
OVERVIEW

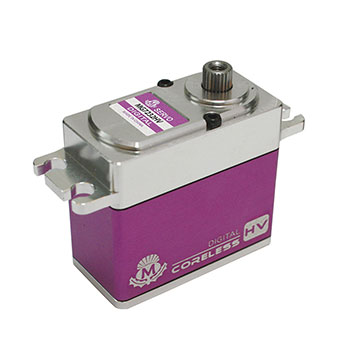

The MG7232HV is part of MacGregor’s new range of high voltage digital servos. This high voltage, high torque servo has been designed for use with large scale & aerobatic aircraft.
MacGregor’s HV servos are designed with motors and electronics that operate off the direct voltage of a 2-cell Li-Po, Li-Ion, or Li-Fe receiver battery pack. This eliminates the need for a regulator and lowers the chance for a power failure that can cause a catastrophic failure of your model. Also note that the HV servo specs are shown at the higher voltage (8.4V 2S LiPo) but will still operate on a standard 5-cell 6V NiCd, Ni MH battery with a reduction in performance of approximately 10% in speed and torque.
SPECIFICATIONS:
Dead band: | 1µs |
---|---|
Working frequency: | 1520µs / 330hz |
Motor: | Coreless Motor |
Operating Speed (6.0V): | 0.12sec/60° |
Operating Speed (8.4V): | 0.09sec/60° |
Stall Torque (6.0V): | 26.2kg.cm (363.83oz/in) |
Stall Torque (8.4V): | 31.5kg.cm (437.43oz/in) |
Dimensions: | 40.5 x 20.5 x 36mm /1.59 x 0.80 x 1.43in |
Weight: | 72g (2.54oz) |
Connector Wire Length: | JR 265mm (10.43in) |
Bearing: | 2BB |
